WALL-MOUNTED | MOTORIZED | WINCH AWNING
NQ602
A motorized wall-mounted awning designed for effortless outdoor comfort.

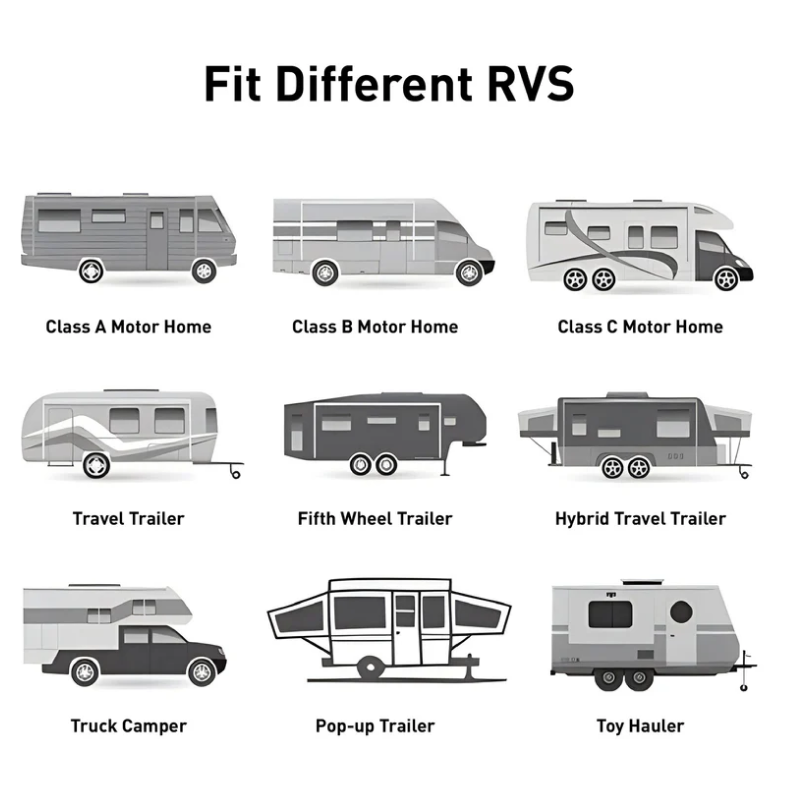

Easy to install, stable in operation, and convenient to use, it brings one-click shading solutions to motorhomes, campervans, and caravans.
Features:
- Motorized wall-mounted awning for motorhomes, campervans, and caravans
- Powered by DOOYA tubular motor for smooth and reliable electrical operation
- One-click control for convenient opening and closing
- Tight and straight fabric opening, with no rafter required
- Reinforced arms and chain-linked arm joint for stronger tension and stability
- Standard wall-mounting brackets included
- Integrated COB light strip available for smooth ambient lighting
FEATURE
- Wall-mounted Motorized awning for motorhomes, campervans and caravans
- Electrical operation powered by Dooya tubular motor
- Easy One-click control for opening and closing
- Reinforced arms and chain-linked arm joint for stable fabric tension
- 6063-T5 Aluminum profiles for a lightweight, durable, and corrosion-resistant structure
- 480GSM heavy-duty PVC fabric with reinforced mesh construction
- Standard wall-mounting brackets included
- COB light strip is applied at the cassette bottom
- Available in multiple lengths from 2m to 4m
MATERIALS
Aluminum Structure
-
6063-T5 aluminum profiles
(Tested to GB/T 5237.4-2017, with all tested items passed) - Tensile strength: 180 N/mm²
- Yield strength Rp0.2: 150 N/mm²
- Elongation A50mm: 10%
Surface Treatment
- Electrostatic powder coating process
- Coating thickness: approx. 100–120 μm
- 500h neutral salt spray test passed
- RoHS compliant powder coating
Tubular Motor
Powered by DOOYA tubular motor for smooth and reliable electrical operation
Shading Fabric
- 480GSM heavy-duty PVC fabric with reinforced mesh construction
- Waterproof / Water pressure resistance: >190 kPa
- Tear strength: 120 N / 120 N
- Colour fastness to rubbing: Grade 4–5
- Colour fastness to light: Grade 4+
- Flame-retardant performance: FMVSS 302 passed, SE/0
- Anti-mildew performance: Grade 0 after 28 days
- REACH SVHC screening: PASS, ≤0.1% w/w
DIMENSIONS
| Model | A Full Width |
B Extension |
C Fabric Width |
Awning Weight |
|---|---|---|---|---|
| NQ602-200150 | 2.0m / ≈6.5ft | 1.5m / ≈4.2ft | 1.83m / ≈6.0ft | 17.5kg |
| NQ602-250150 | 2.5m / ≈8.2ft | 1.5m / ≈4.2ft | 2.33m / ≈7.6ft | 18.0kg |
| NQ602-250200 | 2.5m / ≈8.2ft | 2.0m / ≈6.5ft | 2.33m / ≈7.6ft | 20.5kg |
| NQ602-300150 | 3.0m / ≈9.8ft | 1.5m / ≈4.2ft | 2.83m / ≈9.3ft | 22.3kg |
| NQ602-300200 | 3.0m / ≈9.8ft | 2.0m / ≈6.5ft | 2.83m / ≈9.3ft | 23.8kg |
| NQ602-300250 | 3.0m / ≈9.8ft | 2.5m / ≈8.2ft | 2.83m / ≈9.3ft | 25.3kg |
| NQ602-350150 | 3.5m / ≈11.5ft | 1.5m / ≈4.2ft | 3.33m / ≈10.9ft | 25.3kg |
| NQ602-350200 | 3.5m / ≈11.5ft | 2.0m / ≈6.5ft | 3.33m / ≈10.9ft | 26.5kg |
| NQ602-350250 | 3.5m / ≈11.5ft | 2.5m / ≈8.2ft | 3.33m / ≈10.9ft | 27.5kg |
| NQ602-400150 | 4.0m / ≈13.1ft | 1.5m / ≈4.2ft | 3.83m / ≈12.6ft | 27.7kg |
| NQ602-400200 | 4.0m / ≈13.1ft | 2.0m / ≈6.5ft | 3.83m / ≈12.6ft | 29.0kg |
| NQ602-400250 | 4.0m / ≈13.1ft | 2.5m / ≈8.2ft | 3.83m / ≈12.6ft | 30.3kg |
OPERATION
INSTALLATION
3D PREVIEW
